PROJECT 2A: FARNSWORTH HOUSE MODEL

The Farnsworth House was designed and constructed by Ludwig Mies van der Rohe between 1945 and 1951. It is a one-room weekend retreat in what then was a rural setting, located 55 miles (89 km) southwest of Chicago's downtown, on a 60-acre (24 ha) estate site adjoining the Fox River, south of the city of Plano, Illinois. The steel and glass house was commissioned by Edith Farnsworth, M.D., a prominent Chicago nephrologist, as a place where she could engage in her hobbies—playing the violin, translating poetry, and enjoying nature.


PROJECT 2B: ORTHOGRAPHIC DRAWINGS OF FARNSWORTH HOUSE

FLOOR PLAN

SOUTH ELEVATION

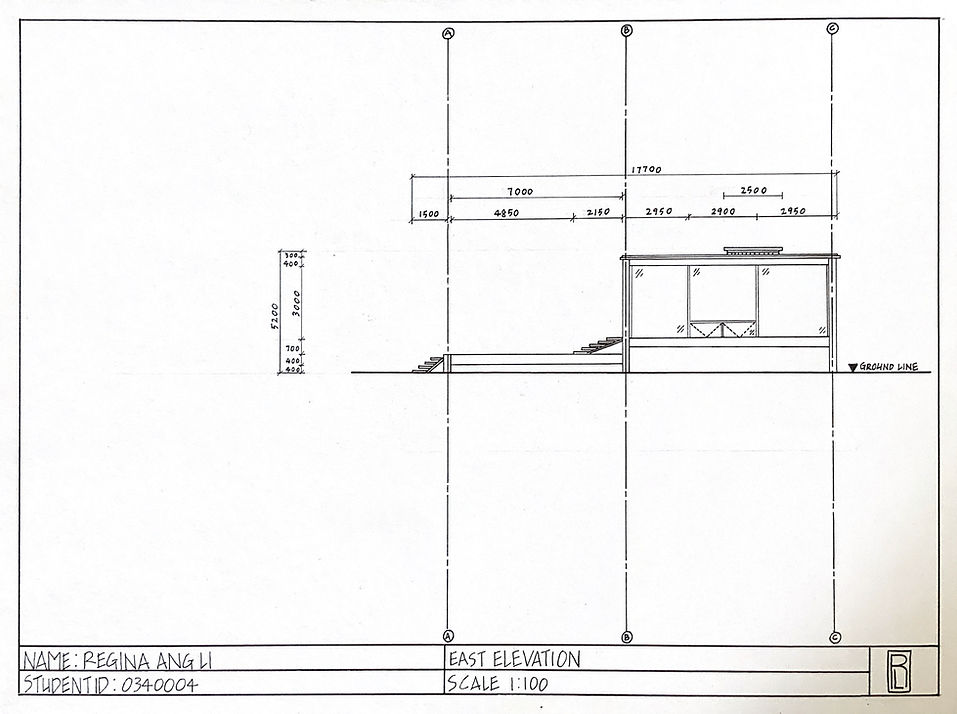

EAST ELEVATION

LONGITUDINAL SECTION

PROJECT 2C: AXONOMETRIC DRAWING OF FARNSWORTH HOUSE

PROJECT 2D: PERSPECTIVE DRAWINGS OF FARNSWORTH HOUSE
